Core Drilling Machine

Core Drilling Machine

ANT-SCDM 450/500/550

Core Drilling Machine

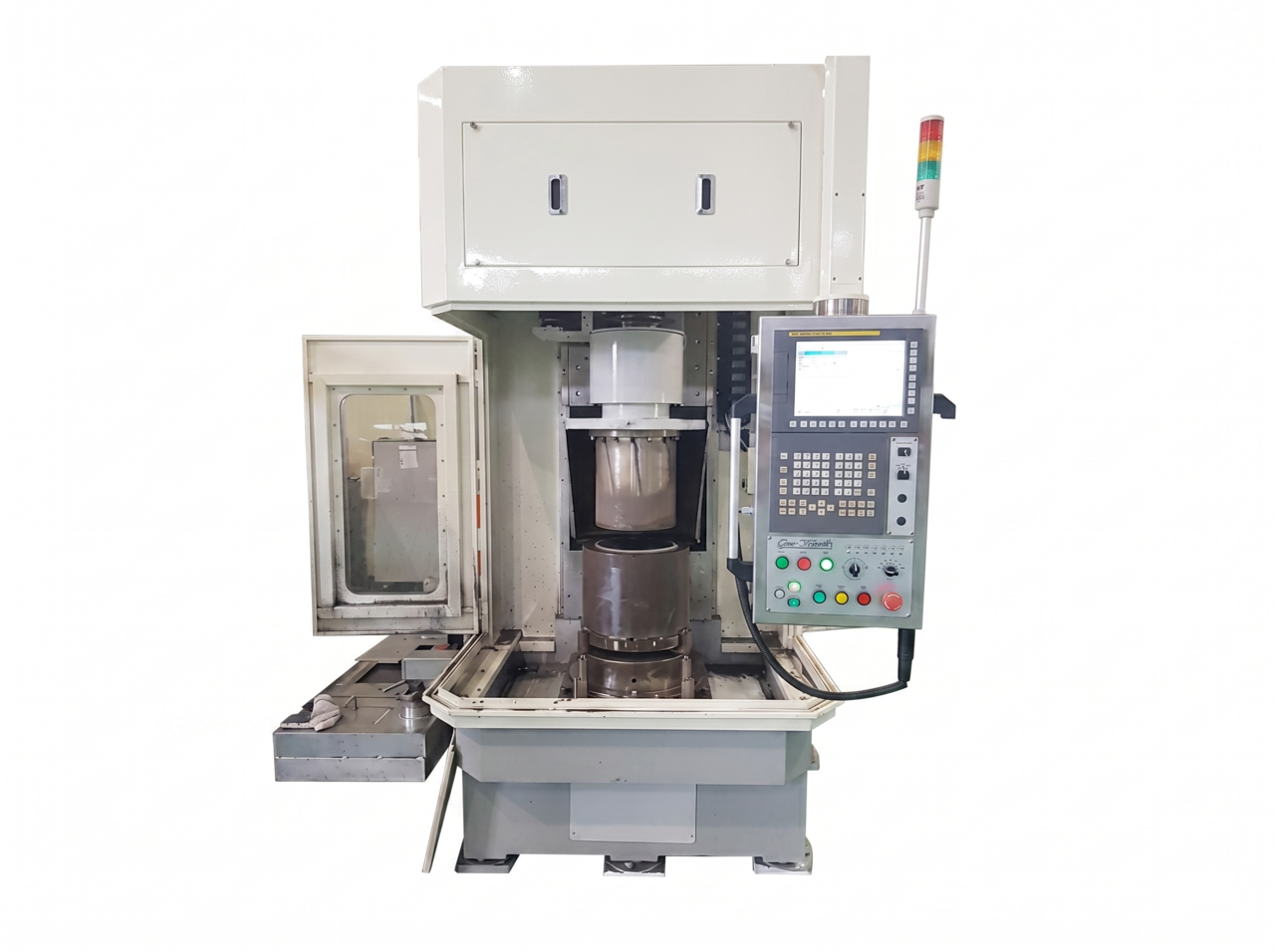

Dedicated machine for ID and OD machining of Sapphire, Silicon, and Quartz ingots. High-rigidity cast iron (GC300) structure for easy maintenance, with N.C Control-based precision achieving coring thickness deviation within ± 0.1mm.

  • 01Work range Max Ø 600 × 500 mm — large-diameter ingot support
  • 02High-rigidity cast iron (GC300) structure for easy maintenance
  • 03N.C Control (FANUC Oi-MF) precision control
  • 04ID/OD top/bottom coring thickness deviation ± 0.1mm
  • 05Metal and electroplated Diamond Wheel (#80~120 mesh)
Max Ø 600 × 500 mmWork Range
GC300 Cast IronHigh-Rigidity Structure
± 0.1 mmThickness Tolerance
◈Spindle Inverter Motor — SERVO 4.4 kW (Option)
COMPATIBLE MATERIALS

Machinable Materials

Monocrystalline SiPolycrystalline SiSiCSapphireQuartzAlNAlumina CeramicGraphite
SPECIFICATIONS

Technical Specs — ANT-SCDM

Standard specifications for ANT-SCDM 450 / 500 / 550. Custom design and manufacturing available per material and process.

Workpiece
Work SizeMax Ø 600 × L 300 / 400 / 500 mm
Coring Thickness Variance± 0.1 mm (ID, OD, top & bottom)
Tool — Metal Diamond Wheel
DiameterTo be decided per process
LengthL + 50 mm
Mesh Range#80 ~ #120 (Metal · Electroplated)
Spindle Unit
R.P.M.0 ~ 1,000 (Variable)
Motor5.5 kW × 4P × 220 V × 50 / 60 Hz
Servo Option4.4 kW SERVO Motor (Option)
Z-Axis Feed Unit
StrokeL + 100 mm
Motor4 kW AC Servo Motor, 3,000 rpm
ReductionReducer 1/10, Pulley 1/2
Ball ScrewØ 63 × Lead 20
Coolant & Utility
Coolant Tank250 L
Coolant Pump170 L/min
Main Air5 kg/cm²
Main PowerAC 220 V × 3-phase × 60 Hz
Control PowerAC 220 V, DC 24 V
Footprint
Installation Area (W × L × H)2,310 × 2,550 × 3,000 mm
Construction
FrameGC300 high-rigidity casting
ControllerN.C — FANUC Oi-MF
