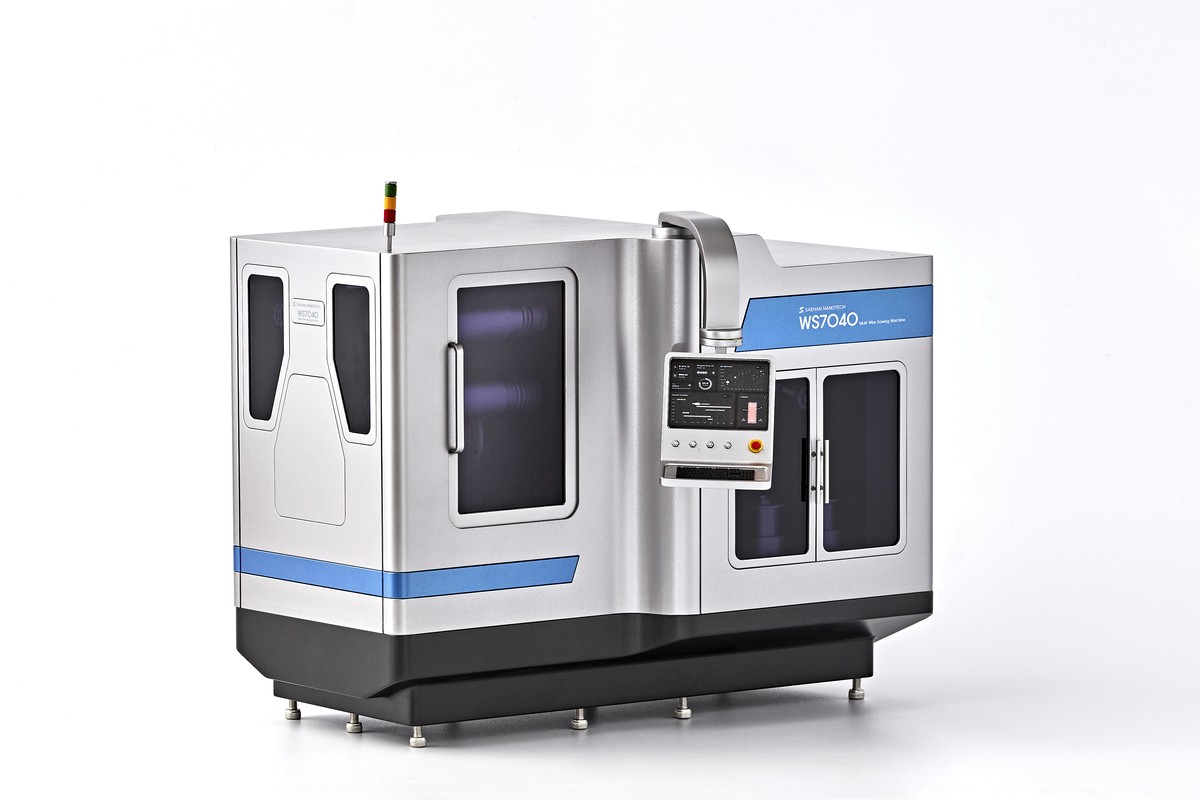

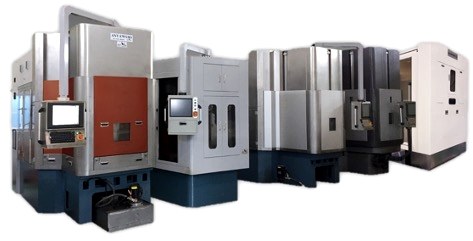

Multi Wire Sawing Machine

ANT-WS Series

Optimized cutting technology (ingot tilting and rotating) for maximum productivity and quality. We design and manufacture custom-built equipment tailored to your material size and shape requirements.

01Large-diameter ingot and ring-type material high-efficiency sawing

022 Spindle / 4 Spindle configurations — customized per application

03Diamond and Slurry Wire compatible — optimized for difficult-to-cut materials

Diamond · SlurryWire Type

Rotary · Tilting · FixedCutting Method

2 · 4 SpindleConfiguration

Technical Highlights

Proprietary Tilting / Rotating Technology

Exclusive ingot tilting and rotating mechanism adjusts cutting angle in real time — up to 3× productivity vs. conventional methods. No other Korean wire saw manufacturer offers this.

Diamond Wire — Maximum Material Yield

Ultra-fine diamond-plated wire minimizes kerf loss to under 200μm. More slices per ingot = lower cost per wafer. Superior surface finish reduces downstream polishing.

Fully Customized Machine Manufacturing

Every ANT-WS machine is engineered to your material, workpiece size, thickness spec, and throughput target. Wire guide roller geometry, coolant systems, and tensioning configured per order.

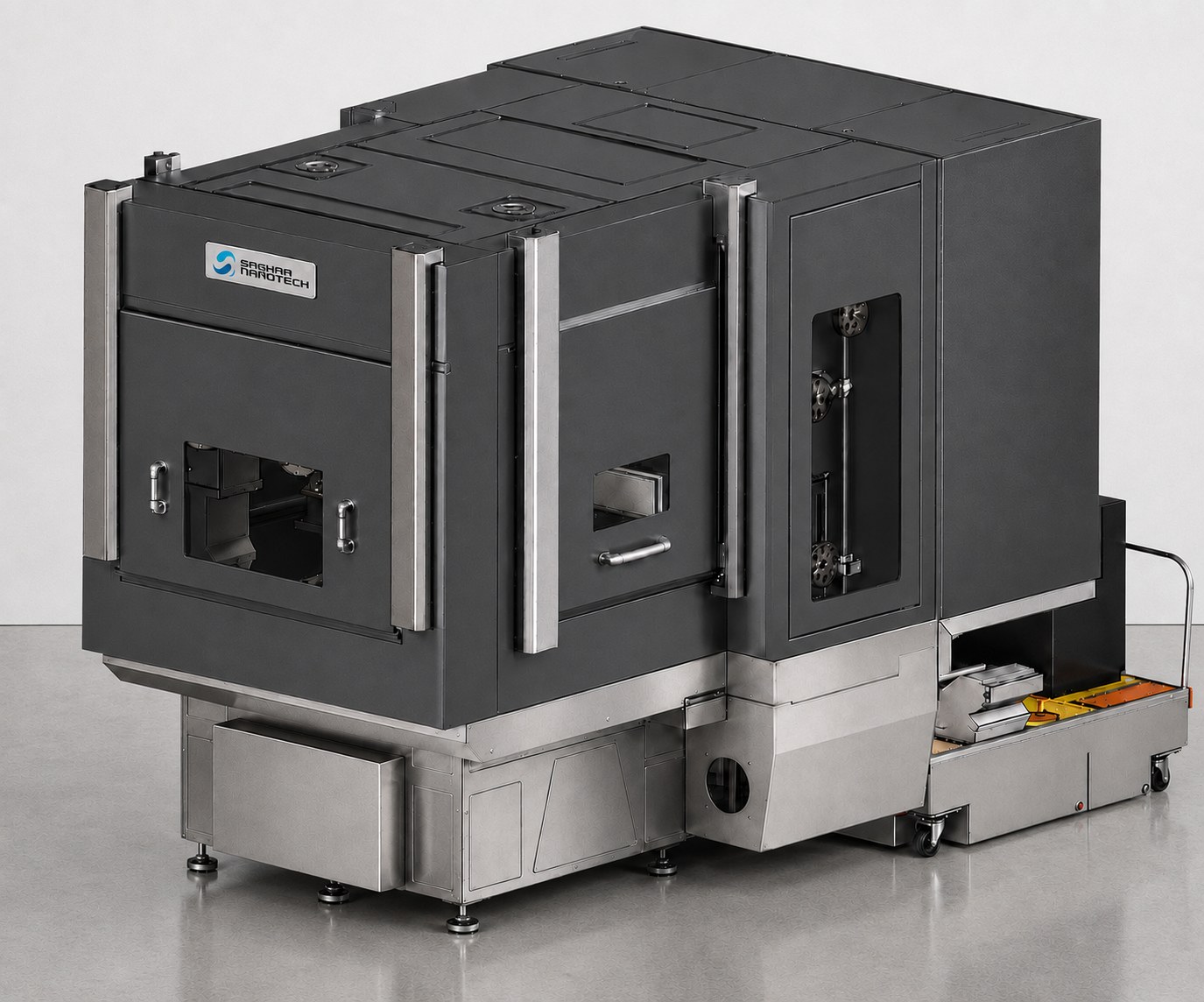

Rare Earth Magnet Specialist

NdFeB and SmCo magnets require diamond wire sawing with water-based coolant. Saehan Nanotech pioneered this in Korea — completed Korea's first motor magnet cutting project in 2024.

Recipe-Based Process Optimization

Over two decades of accumulated cutting data. Material-specific process recipes validated through real production runs.

Full Lifecycle Support

Product development, design, manufacturing, installation, training, and after-sales service — all in-house.

Cast-Iron Monolithic Frame

The spindle housing is cast as a single monolithic structure to minimize vibration and ensure high structural rigidity. A water-cooled body further suppresses thermal displacement during machining.

Integrated cast spindle housing design
Water-cooled (water-jacket) body structure

Dual-End-Supported Main Roller

Supporting the main roller on both ends improves rotational accuracy and extends ingot cutting length. High-speed wire operation maximizes throughput.

Higher rotational accuracy + longer cutting span
High wire speed → higher productivity

♦Patent No. 10-1155784

Ingot Tilting Mechanism

Center-axis tilting device delivers efficient sawing of large-diameter ingots. Essential for hard-to-machine materials and Diamond Wire processing — preserves both productivity and precision.

Drive: Pulley & Belt / Cam & Link
Tilt Angle: ±1 ~ 7°

♦Patent No. 10-1924886

Ingot Rotation Mechanism

Center-axis rotation device maximizes sawing efficiency for ring-shaped materials. Essential for hard-to-machine materials and Diamond Wire processing — raises both yield and accuracy.

Drive: Pulley & Belt rotation
Rotation Speed: max 20 rpm
Optimized for ring-shaped & hard-to-machine materials

Model	ANT-WS 20 Series	ANT-WS 40 Series	ANT-WS 50 Series	ANT-WS 60 Series
Maximum Diameter (mm) : (A)	Ø 200	Ø 400	Ø 500	Ø 600
Length of Workpiece (mm)	300	300 / 400 / 500	300 / 400 / 500	300 / 400 / 500
Table Slicing Direction (U/D)	Down	Up / Down	Up / Down	Up / Down
Wire Type (D/S)	Diamond / Slurry	Diamond / Slurry	Diamond / Slurry	Diamond / Slurry
Ingot Rotation Type (T/R)	Tilting / Rotary	Tilting / Rotary	Tilting / Rotary	Tilting / Rotary
Machine	Wire Running Speed	0 ~ 20 m/sec
Main Pitch Roller (mm)	Ø 200 ~ Ø 250
Number of Main Spindles	2 sets	4 sets
Traverses / Bobbin / Tension	2 sets / 2 sets / 2 sets
In-feed Table	Z Table Stroke	Tilting Type: (A) + 50 mm / Rotary Type: reviewed individually
Z In-Feed Rate	0.01 ~ 2,000 mm/min
Quick Traverse Rate	1.0 ~ 10,000 mm/min
Wire — Diameter / Tension	Ø 0.12 ~ Ø 0.25 / 30N ~ 60N
Coolant Tank — Volume / Delivery Rate	200 ~ 300 ℓ / 120 ℓ/min
Coolant / Spindle-Oil Chiller	2,700 ~ 8,400 kcal/h / 2,700 kcal/h
Control Axis / Controller	ACC24E2A (9 axes total) / PC-NC (P-mac)
Machine Dimensions (W × D × H)	Approx. 2,400 × 4,200 × 2,900 mm
Machine Weight	Approx. 12,500 ~ 22,500 kg
Main Power / Power Consumption	3-phase, 220V, 50/60 Hz / 142 kVA (16 SQ)
Air Working Pressure (kg/cm²)	5 ± 0.5 (Clean Air)

Model

ANT-WS
20 Series

ANT-WS
40 Series

ANT-WS
50 Series

ANT-WS
60 Series

Maximum Diameter (mm) : (A)

Ø 200

Ø 400

Ø 500

Ø 600

Length of Workpiece (mm)

300

300 / 400 / 500

Table Slicing Direction (U/D)

Down

Up / Down

Wire Type (D/S)

Diamond / Slurry

Ingot Rotation Type (T/R)

Tilting / Rotary

Machine

Wire Running Speed

0 ~ 20 m/sec

Main Pitch Roller (mm)

Ø 200 ~ Ø 250

Number of Main Spindles

2 sets

4 sets

Traverses / Bobbin / Tension

2 sets / 2 sets / 2 sets

In-feed Table

Z Table Stroke

Tilting Type: (A) + 50 mm / Rotary Type: reviewed individually

Z In-Feed Rate

0.01 ~ 2,000 mm/min

Quick Traverse Rate

1.0 ~ 10,000 mm/min

Wire — Diameter / Tension

Ø 0.12 ~ Ø 0.25 / 30N ~ 60N

Coolant Tank — Volume / Delivery Rate

200 ~ 300 ℓ / 120 ℓ/min

Coolant / Spindle-Oil Chiller

2,700 ~ 8,400 kcal/h / 2,700 kcal/h

Control Axis / Controller

ACC24E2A (9 axes total) / PC-NC (P-mac)

Machine Dimensions (W × D × H)

Approx. 2,400 × 4,200 × 2,900 mm

Machine Weight

Approx. 12,500 ~ 22,500 kg

Main Power / Power Consumption

3-phase, 220V, 50/60 Hz / 142 kVA (16 SQ)

Air Working Pressure (kg/cm²)

5 ± 0.5 (Clean Air)
