Grinding Center Machine ANT-GCT 500B/600B

ANT-GCT 500B/600B

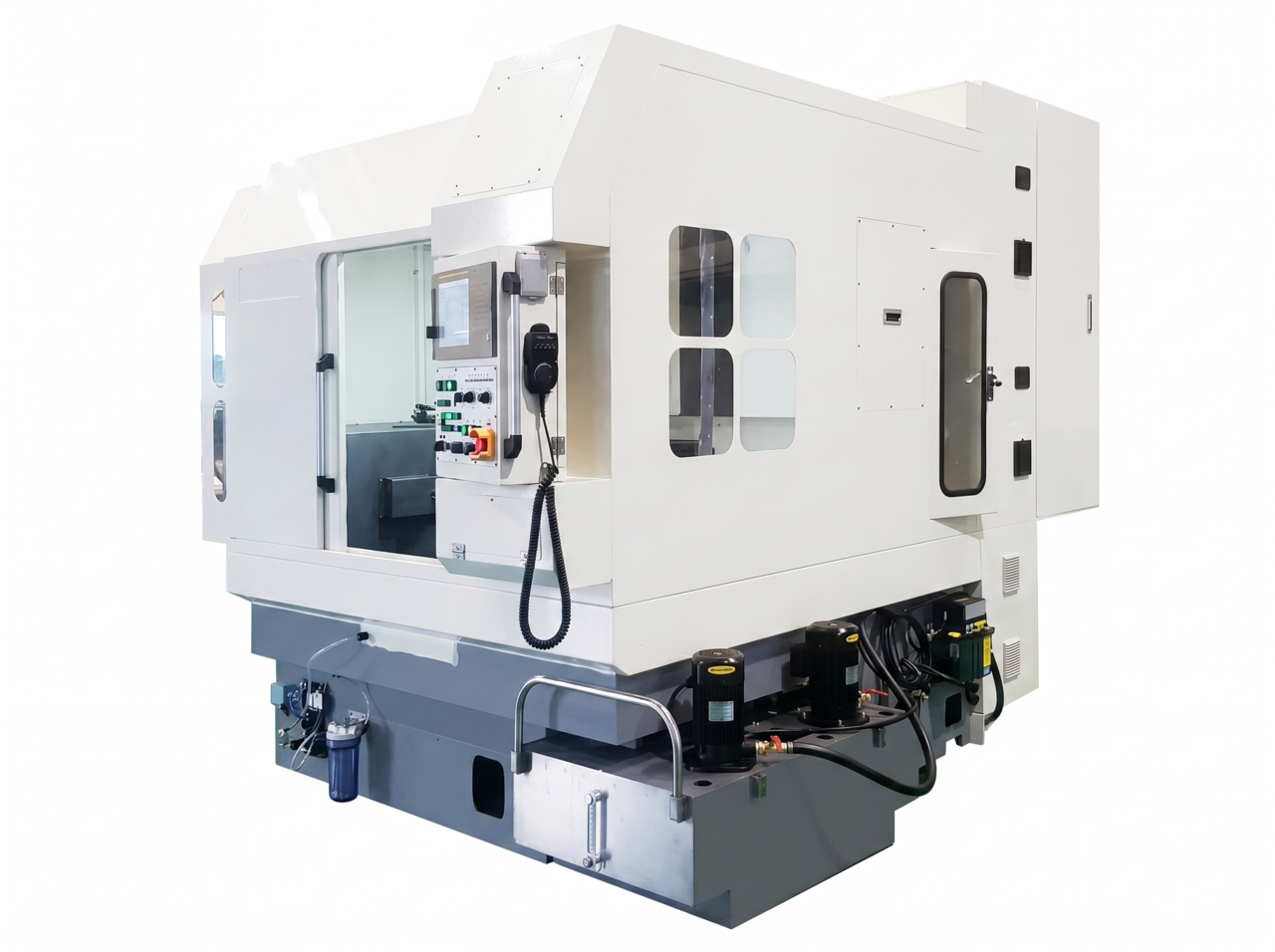

High-Performance Grinding Center

A 4-axis CNC combined machine equipped with a high-resolution turntable featuring FANUC built-in motor. Handles both cutting and grinding operations in a single setup — ID, OD, and profile machining with seamless curve-to-line transitions. Includes custom tool development support.

01B-Axis FANUC Dis Motor built-in turntable — high-resolution drive
02Cutting and grinding in one combined machine (ID / OD / profile)
03Index function + Rotary function (dedicated Macro Program)
04Curve-to-line machining transition — excellent connected processing
05Custom dedicated tool development support per product

Ø 0.2 ~ Ø 100 mmTool Range

4-Axis CNCCombined Machining

Ø 600 TableLarge Work Area

◈FANUC Rotor & Stator based — in-house developed index system

KEY ADVANTAGES

Technical Highlights

Multi-Process Single Setup

Surface, ID, and OD grinding plus cutting in one CNC setup. Reduces fixturing errors and shortens lead time.

Hard Brittle Material Optimization

Diamond grinding wheels and coolant parameters configured specifically for SiC, fused silica, and high-purity silicon.

Sub-Micron Surface Finish

High-rigidity structure minimizes vibration — enabling sub-micron roughness even during high-removal passes.

SPECIFICATIONS

Technical Specs

Standard specifications. Custom design and manufacturing available.

Type	4-axis CNC combined machine (cutting + grinding)
B-Axis	FANUC Dis Motor built-in turntable
Tool Range	Ø 0.2 ~ Ø 100 mm
Table	Ø 600 mm
Surface Roughness	Ra < 0.1μm
Controller	FANUC or equivalent
Index	In-house developed with dedicated Macro Program

Interested in This Machine?

TEL: +82-55-586-1331 | info@saehannanotech.com
