MACHINE

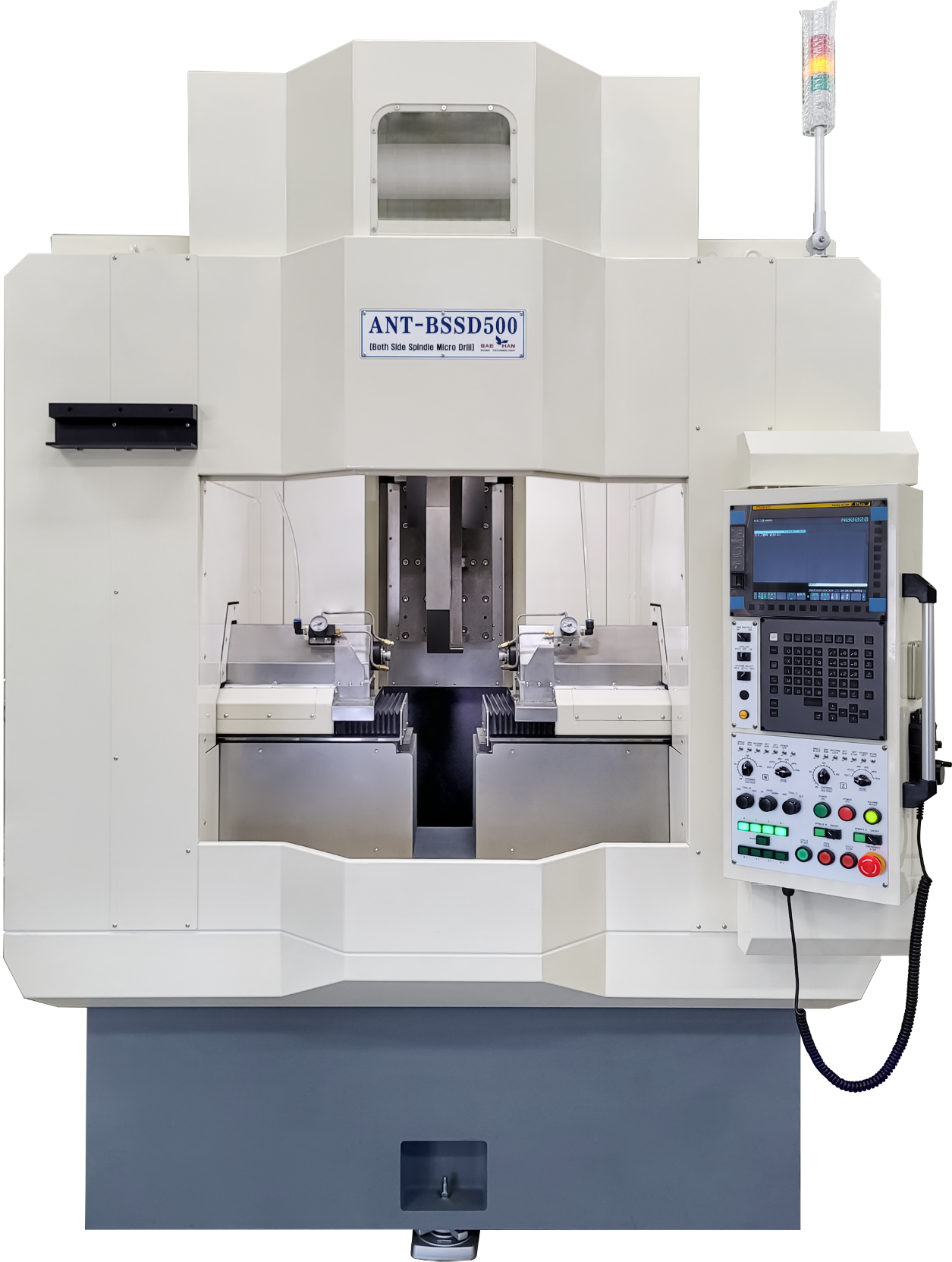

Both-Side Drilling Machine

ANT-BSSD500

ANT-BSSD500

Both-Side Drilling Machine

The world's first simultaneous dual-spindle micro hole drilling machine. Two spindles drill from both faces at once — eliminating the workpiece reversal that causes concentricity defects in conventional drilling.

  • 01Both-side simultaneous drilling — concentricity within 20㎛
  • 02Horizontal structure — natural chip evacuation, L/D 30
  • 032~3× throughput vs vertical type — extended unattended run time
≤ 20 ㎛Concentricity
L/D 30Max Aspect Ratio
Ø 0.30 mmMin Diameter
◈Korean Patent No. 10-1579164

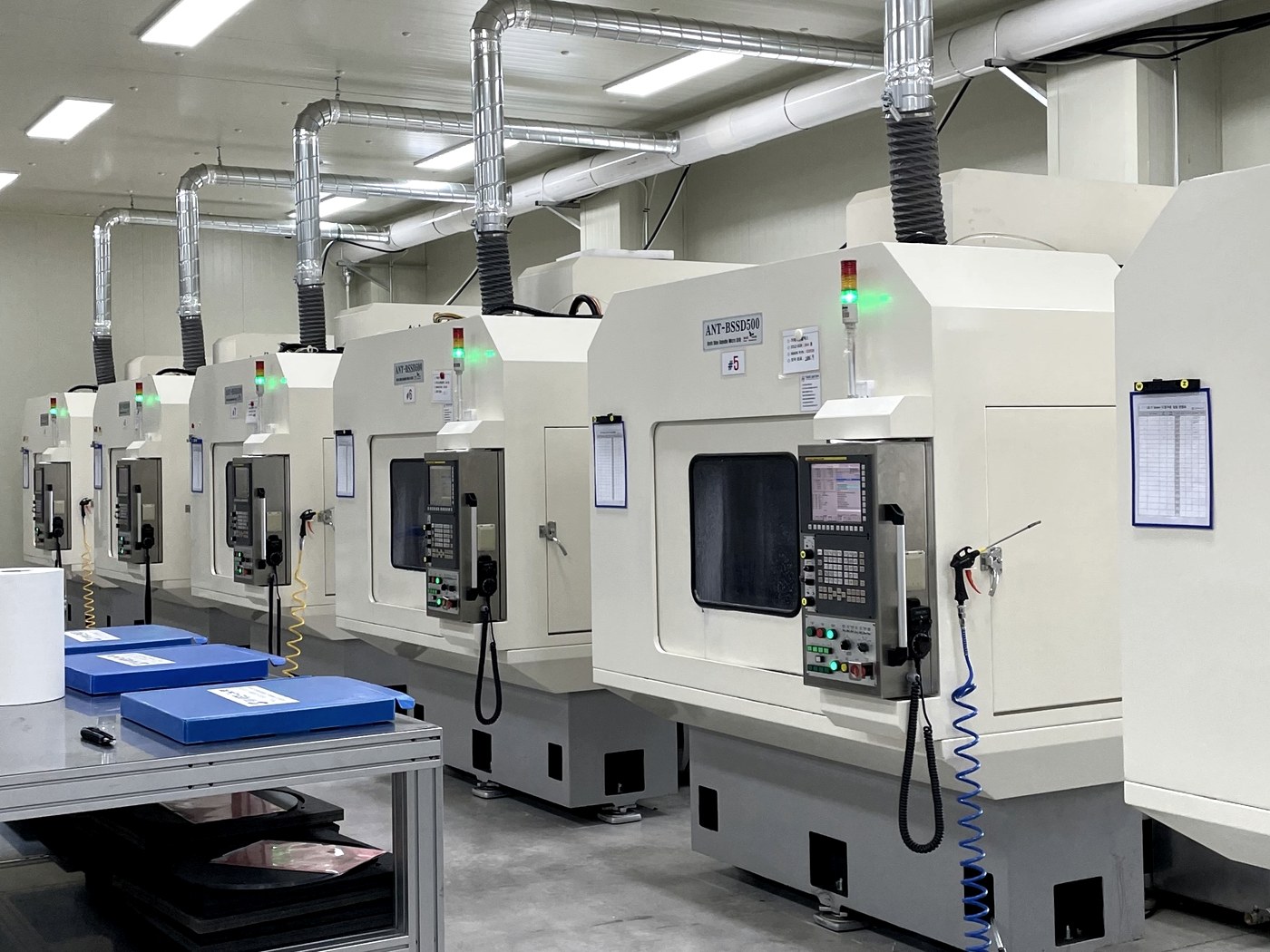

ANT-BSSD500 Production Line
PRODUCTION FACILITY

Manufactured In-House at Our Changwon Factory

Multiple ANT-BSSD500 units in active production. Each machine is designed, manufactured, assembled, and tested at our headquarters — no outsourcing at any stage. The engineering team that designs your machine is the same team that supports you after delivery.

Precision Machining Floor
QUALITY CONTROL

Full Production, Testing, and QC Under One Roof

From raw casting to final calibration — every step happens in our facility. Precision machining, electrical assembly, CNC controller integration, spindle alignment, and full functional testing are completed before any machine leaves the factory.

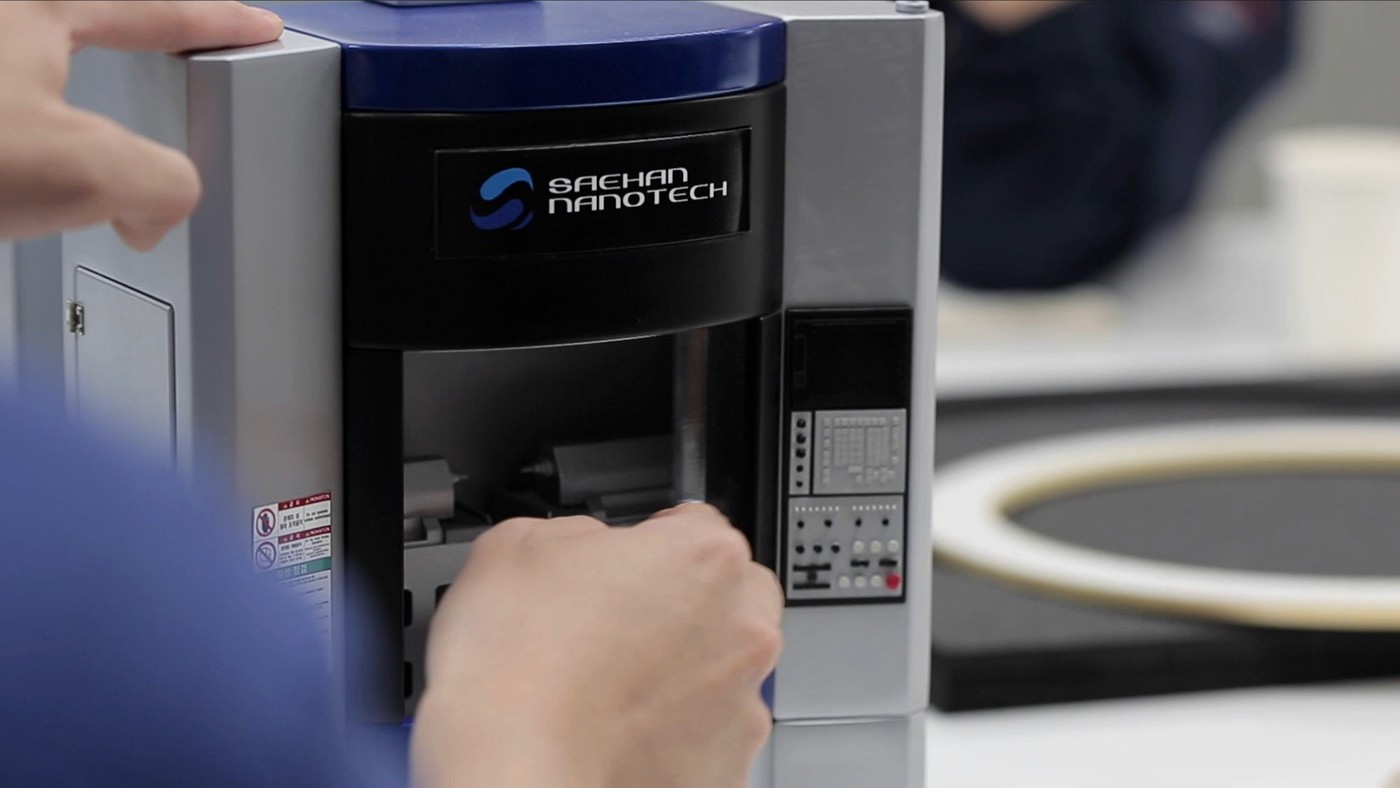

ANT-BSSD500 Close-Up
PRECISION IN EVERY DETAIL

Designed, Manufactured, and Tested In-House

Every ANT-BSSD500 is built entirely at our Changwon headquarters — from mechanical design and control system integration to final assembly, calibration, and quality testing.

PRODUCT VIDEO

ANT-BSSD500 in Operation

MATERIAL

What Materials Can Be Machined?

Specialized for hole drilling in brittle hard materials with hardness above 1,000 Hv.
Diamond tool-based precision machining minimizes chipping and micro-cracks.

Si

Monocrystalline Silicon

Single Crystal Silicon

Hardness ~1,200 Hv
AlN

Aluminum Nitride

ESC & Heater Substrate

ESC · Heater Material
SiO₂

Fused Silica / Quartz

Chamber Components

Hardness ~1,100 Hv

Also compatible with: Polycrystalline Si · SiC · Alumina Ceramic · Graphite · Sapphire

SPECIFICATIONS

Technical Specs

Korean Patent No. 10-1579164. Standard specifications — custom design available.

Stroke (X,Y,Z1,Z2)480×480×140×140 mm
Work SizeMax Ø400 mm, Max t 20.0 mm
Spindle (FISCHER)4,000~25,000 RPM · HSK-E25 · 1kW
Drill Range (PCD)Min Ø0.30 ~ Max Ø3.0 mm
ControllerFANUC-OiMF-PLUS
CoolantTank 220ℓ · Spindle Coolant 2,500 kcal
Machine Size1,900×2,900×2,700 mm · 6,200 kg
Utility220V±10V · Air 5±0.5 bar · 22~26°C

Interested in This Machine?

Contact us for technical specifications, machining test requests, or a custom quote.
